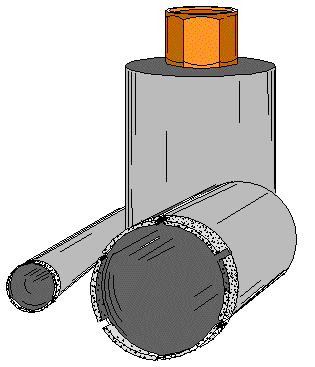

Segmented Diamond Core Drills

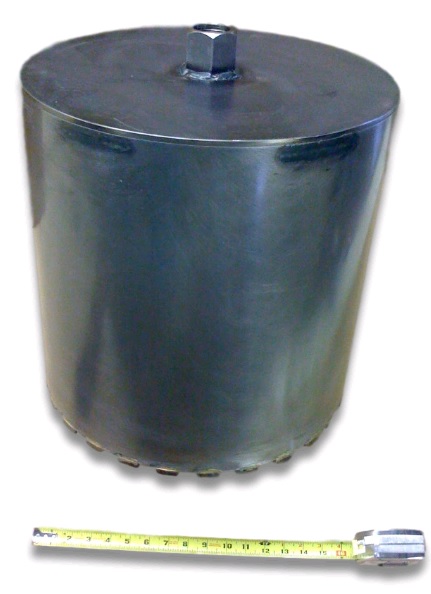

Segmented Diamond Core Drills for 6.000” - 36.000” holes
When Diamond Core Drills exceed 6.000” in diameter the diamond section is manufactured in segments.  The number of diamond segments and the spacing can be adjusted to your exact needs.  We will help you reach the optimum performance level of your Segmented Diamond Core Drill.  We realize in many circumstances there are a variety of factors that may prevent you from doing the things that  we recommend.  Not all jobs can be done in a controlled environment as a shop or lab.  Some equipment cannot be adjusted to accommodate  certain speeds and feeds.  We can help these situations by modifying the bonds or the concentration of diamond.
The depth of Segmented Diamond Core Drills is usually 3/8", or 1/2", other depth sizes can be made upon request.  The standard wall thickness on Segmented Diamond Core Drills that are 6.000” and above is  0.100” - 0.187”  The common mount sizes for large Segmented Diamond Core Drills are 7/8-14,1-14,1-1/2-12, and 2-1/2-12.

Segmented Diamond Core Drills for ceramic
Segmented Diamond Core Drills for quartz
Segmented Diamond Core Drills for silicon
Segmented Diamond Core Drills for carbon fiber
Segmented Diamond Core Drills for sapphire
Segmented Diamond Core Drills stone
Segmented Diamond Core Drills for glass
Segmented Diamond Core Drills for silicon nitride
Segmented Diamond Core Drills for silicon carbide

LARGE CORE DRILLS
