1A8SP style wheels are solid resin or metal bond that are lapped flat with a thickness tolerance of ±.0001". 1A8P style wheels are used for precision slot grinding, slicing and dicing, as well as some precision cut-off operations. Our  1A8SP style wheels can grind ceramic, quartz, sapphire, glass, carbide, graphite, and other ferrite materials.   1A8SP wheels should be used with a set of 1A8F precision flanges. Wheel exposure should not exceed 15 times the thickness of the wheel.  We can also manufacture flanges for gang wheel applications.

1A8SP DIAMOND PRECISION SLOT WHEEL

1A8P DIAMOND 0.625 X 0.005-0.125 X  0.125, 0.250, or 0.375
1A8P DIAMOND 0.750 X 0.005-0.125 X  0.125, 0.250, or 0.375
1A8P DIAMOND 1.000 X 0.005-0.125 X  0.125, 0.250, or 0.375
1A8P DIAMOND 2.000 X 0.005-0.125 X  0.250, 0.375, or 0.500
1A8P DIAMOND 3.000 X 0.005-0.125 X  0.250, 0.375, or 0.500
1A8P DIAMOND 4.000 X 0.005-0.125 X  1.250, or 2.750
1A8P DIAMOND 5.000 X 0.005-0.125 X  3.500
1A8P DIAMOND 6.000 X 0.005-0.125 X  3.500
1A8P DIAMOND 8.000 X 0.005-0.125 X  3.500
specify grit size when ordering

SPECIALS

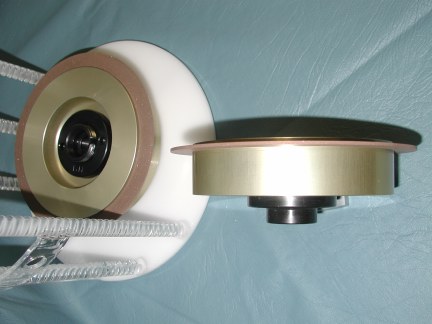

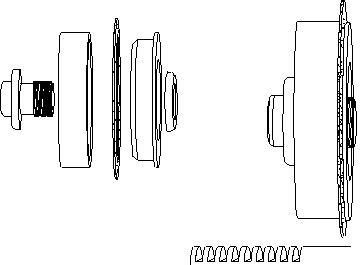

Braemar's 1A8SP style wheels are solid resin bond diamond that is ground flat with a special recessed flange system that has been developed for slotting up to a face plate. We make a wide of wheels for slotting 1" diameter to 300mm diameter wafers. We also build 1A8SP wheels for odd diameter carriers.  All  of our wheels are manufactured to your specs and designed to your needs. The pictures below are some of the many we have made. Any of these can be modified to your needs.
