1A1 Diamond Wheels
braemar product list, diamond wheels, diamond core drills, water swivels, diamond bandsaw blades, electroplated diamond wheels, cbn wheels, carbide burrs, diamond lapping compound
PRECISION
DIAMOND
& CBN
PRODUCTS

PHONE
480-966-9311
E-MAIL










Diamond wheels manufactured with natural or synthetic diamond particles in a resin bond matrix offer high cut rates in wet or dry grinding applications on materials such as carbides, ceramics and non-ferrous metals.

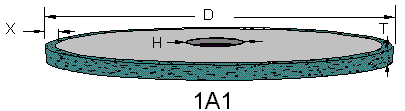

1A1
Bitmap Image
Bitmap Image





WHEEL TYPE
DIAMETER
WIDTH
ARBOR HOLE
GRIT SIZE
COUNTER BORE
3A1 DIAMOND WHEEL
0.625"
0.375"
0.250"
100-600
0.400" X 0.187"
3A1 DIAMOND WHEEL
0.750"
0.500"
0.250"
100-600
0.400" X 0.187"
3A1 DIAMOND WHEEL
0.750"
0.500"
0.375"
100-600
0.400" X 0.187"
3A1 DIAMOND WHEEL
1.000"
0.500"
0.375"
100-600
0.500" X 0.250"
3A1 DIAMOND WHEEL
1.235"
1.000"
0.375"
100-600
0.750" X 0.500"
3A1 DIAMOND WHEEL
1.500"
0.500"
0.375"
100-600
0.500" X 0.250"
3A1 DIAMOND WHEEL
2.000"
0.500"
0.375"
100-600
0.750" X 0.250"
3A1 DIAMOND WHEEL
2.000"
1.000"
0.375"
100-600
0.750" X 0.500"
3A1 DIAMOND WHEEL
3.000"
0.500"
0.375"
100-600
1.000" X 0.250"
3A1 DIAMOND WHEEL
3.000"
1.000"
0.375"
100-600
1.000" X 0.500"


WHEEL TYPE
DIAMETER
WIDTH
ARBOR HOLE
GRIT SIZE
1A1 DIAMOND WHEEL
5.000"
0.125"-0.500"
1.250"
100-600
1A1 DIAMOND WHEEL
6.000"
0.125"-0.500"
1.250"
100-600
1A1 DIAMOND WHEEL
7.000"
0.125"-0.500"
1.250"
100-600
1A1 DIAMOND WHEEL
8.000"
0.125"-0.500"
1.250"
100-600
1A1 DIAMOND WHEEL
10.000"
0.125"-1.000"
1.250"
100-600
1A1 DIAMOND WHEEL
12.000"
0.125"-1.000"
5.000"
100-600
1A1 DIAMOND WHEEL
14.000"
0.250"-1.000"
5.000"
100-600
1A1 DIAMOND WHEEL
16.000"
0.250"-1.000"
5.000"
100-600
1A1 DIAMOND WHEEL
18.000"
0.250"-1.000"
5.000"
100-600
1A1 DIAMOND WHEEL
20.000"
0.250"-1.000"
12.000"
100-600
1A1 DIAMOND WHEEL
22.000"
0.250"-1.000"
12.000"
100-600
1A1 DIAMOND WHEEL
24.000"
0.250"-1.000"
12.000"
100-600
1A1 DIAMOND WHEEL
26.000"
0.250"-1.000"
12.000"
100-600
1A1 DIAMOND WHEEL
28.000"
0.250"-1.000"
12.000"
100-600
1A1 DIAMOND WHEEL
30.000"
0.250"-1.000"
12.000"
100-600
