1A8SP CBN WHEEL
1A8SP style wheels are solid resin or metal bond that are lapped flat with a thickness tolerance
of ±.0001". 1A8P style wheels are used for precision slot grinding, slicing and dicing, as well as
some precision cut-off operations. Our  1A8SP style wheels can grind hard steel.

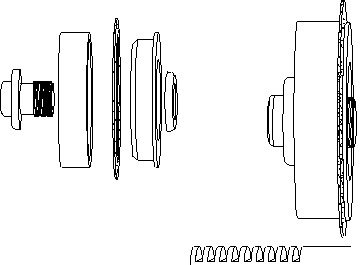

1A8SP wheels should be used with a set of 1A8F precision flanges. Wheel exposure should
not exceed 15 times the thickness of the wheel.  We can also manufacture flanges for
 gang wheel applications.

1A8P CBN 0.625 X 0.005-0.125 X  0.125, 0.250, or 0.375
1A8P CBN 0.750 X 0.005-0.125 X  0.125, 0.250, or 0.375
1A8P CBN 1.000 X 0.005-0.125 X  0.125, 0.250, or 0.375
1A8P CBN 2.000 X 0.005-0.125 X  0.250, 0.375, or 0.500
1A8P CBN 3.000 X 0.005-0.125 X  0.250, 0.375, or 0.500
1A8P CBN 4.000 X 0.005-0.125 X  1.250, or 2.750
1A8P CBN 5.000 X 0.005-0.125 X  3.500
1A8P CBN 6.000 X 0.005-0.125 X  3.500
1A8P CBN 8.000 X 0.005-0.125 X  3.500
specify grit size when ordering
