Truing and Dressing Diamond and CBN Wheels


BRAKE DRESSER
Careful wheel mounting is essential when grinding with a Diamond or CBN wheel. For best performance, the Wheel should be mounted perfectly Normal and concentric to the machine spindle.  Out-of roundness is not a major problem with cup and face wheels.  Straight diamond wheels such As Type 1A1 usually require truing after mounting. An out-of round straight wheel will pound the work piece surface, reducing wheel life and impairing surface finish. This can be avoided By truing the wheel so its entire surface is concentric with the spindle within 0.0005 inch (.0127mm.)  Resin-bonded wheels can be trued, using A silicon carbide brake controlled truing device.

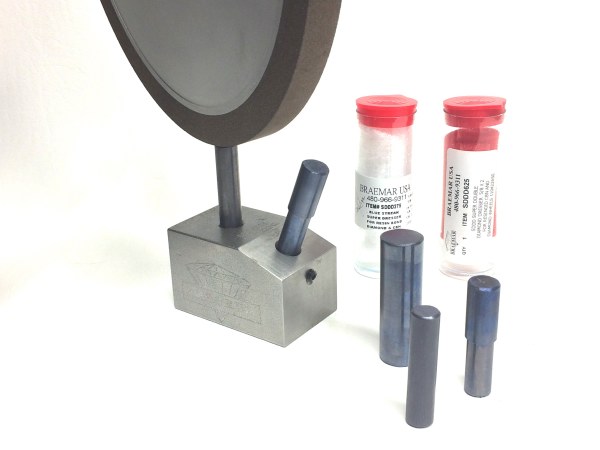

SDDD DRESSER
S.D.D.D. Dressers are a major innovation in truing Diamond and CBN wheels. These tools are manufactured with exotic metal formulations to give outstanding truing action compared to other methods, without removing the wheel from the machine. Wheels can be trued within .0005" without coolant. Use these tools on straight wheels, angled wheels, or wheel sides. Removing run-out increases grinding accuracy, surface finish, and wheel life.  Braemar stocks 3/8", 7/16", & 5/8" SDDD Dressers for immediate delivery.

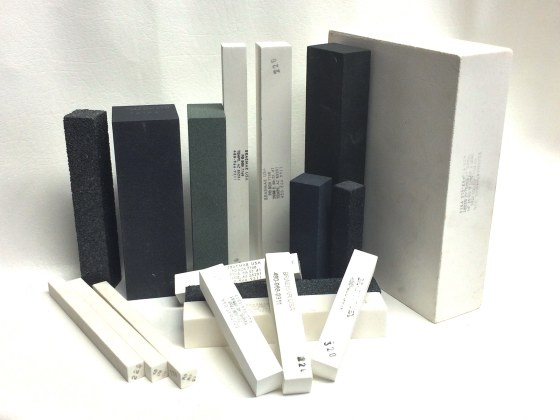

DRESSINGSTICKS
Braemar manufactures and stocks Dressing Sticks for Diamond and CBN Wheels Aluminum oxide or silicon carbide are used for truing, shaping, and dressing super abrasive wheels. Conditioning greatly improves the performance by removing the bond and exposing abrasive, resulting in a free cutting open wheel. Using the correct dressing stick and  proper conditioning of super abrasive wheels is an important part of maximizing  performance.  Available in a range of sizes and bond grades for your exact needs.







DRESSINGSTICKS
Braemar manufactures and stocks Dressing Sticks for Diamond and CBN Wheels Aluminum oxide or silicon carbide are used for truing, shaping, and dressing super abrasive wheels. Conditioning greatly improves the performance by removing the bond and exposing abrasive, resulting in a free cutting open wheel. Using the correct dressing stick and  proper conditioning of super abrasive wheels is an important part of maximizing  performance.  Available in a range of sizes and bond grades for your exact needs.
