Diamond Core Drills

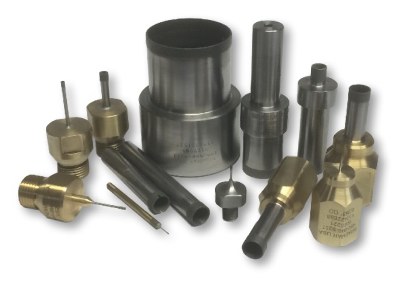

metal bond diamond core drills  alt =

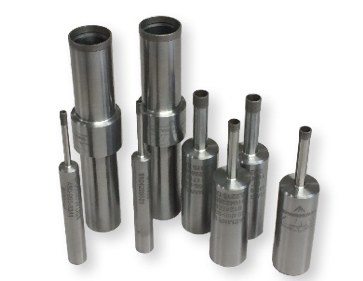

METAL BOND DIAMOND CORE DRILLS FOR CNC MILLING MACHINE metal bond diamond core drills  alt =



Diamond Core Drills by Braemar are custom manufactured to customer specification with a guarantee of size.
Metal Bond Diamond Core Drills  made with our exclusive metal bond developed for high strength and longevity.  Working with Quartz, Ceramics and many man-made modern materials require special design, especially when drilling straight clean holes. Chipping cracking, drill burn-out and excessive wear will occur unless great care is taken.  Our diamond drill sizes range from .026" to 36.000" diameter with tolerance of (±.0005") on 2" and under on ID or OD. We have the ability to mount core drills to your needs or the standard that is used at your facility.

Braemar manufactures Metal Bond Diamond Core Drills  with natural or synthetic diamonds, sieved to the desired grit size, mixed with a metal matrix and sintered to a steel core.  The depth of diamond is usually 1/4", or 3/8", other depth sizes can be made upon request.  The standard wall thickness on drills that are 3 and smaller is 0.030.   Most of our drills are made with synthetic diamonds that are uniform in grit, shape, and size: than natural diamonds. Diamond  size can range from 20/30 to 270/320 grit. Coarser grit sizes are used for faster stock removal without much concern for surface finish.

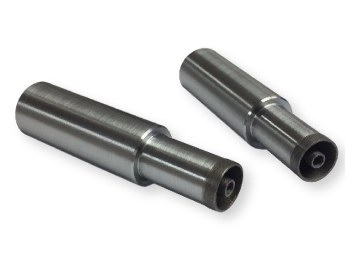

diamond core drill dual

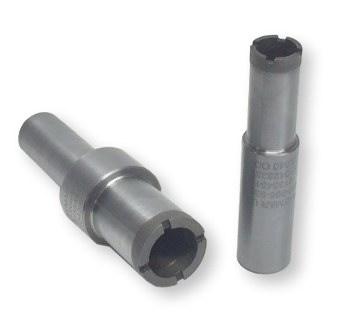

diamond core drill heavy wall

Unique ID coolant channels
Every Diamond Core Drill is designed and manufatured to eliminate material from plugging the ID of the drills. Also keeping a continious flow of coolant will flush out particals and keep your drill cool resulting in longer tool life and less chipping.

diamond core drill cat eye id for plug free drilling
diamond core drill star id for plug free drilling
diamond core drill with square id for plug free drilling
"Cat Eye"
"Diamond"
"Square"





Diamond Core Drill Mount Styles
Braemar Diamond Core Drills can be permanently mounted on standard or custom mounts precision machined from brass.  Our stock mounts are: 5/8-18, 3/4-16, 1-14, 1/2 gas -Belgium Mount, & Winter  Mount.  For best optimum performance it is highly recommended that Metal Bond Diamond Core Drills are permanently mounted.

diamond core drill unmounted
Taper Mount Diamond Core Drill
Belgium  Mount Diamond Core Drill
Nut Mount Diamond Core Drill
Shank Mount Diamond Core Drill
Branson Mount Diamond Core Drill
Unmounted
Diamond Core Drill
Taper Mount
Diamond Core Drill
Belgium  Mount
Diamond Core Drill
Nut Mount
Diamond Core Drill
Shank Mount
Diamond Core Drill
Branson Mount
Diamond Core Drill
