2A2T wheels are available in both resin and metal bonds to handle all your grinding needs. Coolant slots and edge tapers can be added for improved finishes. Diameters from 10.000" to 20.000" and rim widths from 0.250" to 1.500" are available. 2A2T wheels can be modified to your exact requirments.

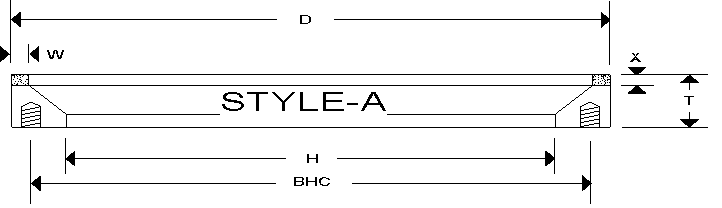

D
T
W
BHC
X
WHEEL
DIAMETER
WHEEL
THICKNESS
RIM
WITH
THREADED HOLE SIZE
BOLT HOLE
CIRCLE
DIAMOND
DEPTH
10.000
1.000
0.250, 0.500, 0.750, 1.000
0.375-16
9.000
0.250, 0.500
11.000
1.000
0.250, 0.500, 0.750, 1.000
0.375-16
10.000
0.250, 0.500
12.000
1.000
0.250, 0.500, 0.750, 1.000
0.375-16
11.000
0.250, 0.500
14.000
1.000
0.250, 0.500, 0.750, 1.000
0.375-16
13.000
0.250, 0.500
18.000
1.000
 0.500, 0.750, 1.000
0.375-16
17.000
0.250, 0.500
20.000
1.750
 0.500, 0.750, 1.000
0.375-16
19.000
0.250, 0.500
