CBN Ewag Wheels
 |
Braemar USA offers a complete line of precision Diamond and CBN grinding wheels
for Ewag grinding machines. This catalog lists a large variety of super abrasive wheels in many
sizes and formulations. Ewag wheels are normally used for grinding cemented carbides, ceramics
tool steels and other hard to grind materials. This catalog describes the standard products mostly
used in industry today. Products other than these standards are available on request.

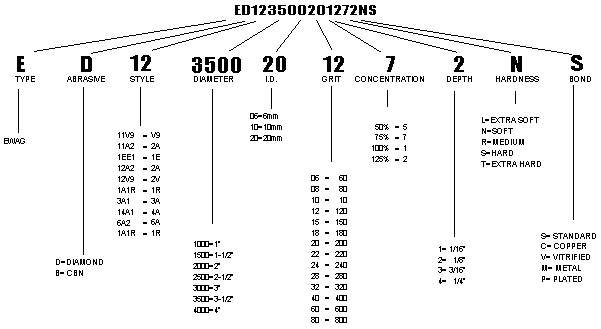

INTERPRETATION OF BRAEMAR DIAMOND AND CBN EWAG WHEELS
1A1 CBN EWAG RESIN BOND WHEEL
ITEM#
BRAEMAR
REF NUMBER
|
D
O/A WHEEL
DIAMETER
|
T
O/A WHEEL
THICKNESS
|
H
ARBOR
HOLE
|
SPEC
ABRASIVE HARDNESS
& CONCENTRATION
|
EB1A3000101274NS
|
3.000" (76mm)
|
0.375" (9.5mm)
|
0.393" (10mm)
|
CBN 120 N 075 B 0.250 DEPTH
|
EB1A3000102274NS
|
3.000" (76mm)
|
0.375" (9.5mm)
|
0.393" (10mm)
|
CBN 220 N 075 B 0.250 DEPTH
|
EB1A3000106074NS
|
3.000" (76mm)
|
0.375" (9.5mm)
|
0.393" (10mm)
|
CBN 600 N 075 B 0.250 DEPTH
|
11A2 CBN EWAG RESIN BOND WHEEL
ITEM#
BRAEMAR
REF NUMBER
|
D
O/A WHEEL
DIAMETER
|
T
O/A WHEEL
THICKNESS
|
H
ARBOR
HOLE
|
A
DISH
ANGLE
|
W
RIM
WIDTH
|
X
BOND
DEPTH
|
SPEC
ABRASIVE HARDNESS
& CONCENTRATION
|
EB2A3000201213NS
|
3.000" (76mm)
|
1.187" (30mm)
|
0.787" (20mm)
|
30°
|
0.156" (4mm)
|
0.187" (5mm)
|
CBN560 120 N 100 B 0.187 D
|
EB2A3000202213NS
|
3.000" (76mm)
|
1.187" (30mm)
|
0.787" (20mm)
|
30°
|
0.156" (4mm)
|
0.187" (5mm)
|
CBN560 220 N 100 B 0.187 D
|
EB2A3000203273NS
|
3.000" (76mm)
|
1.187" (30mm)
|
0.787" (20mm)
|
30°
|
0.156" (4mm)
|
0.187" (5mm)
|
CBN560 320 N 100 B 0.187 D
|
EB2A3000204053NS
|
3.000" (76mm)
|
1.187" (30mm)
|
0.787" (20mm)
|
30°
|
0.156" (4mm)
|
0.187" (5mm)
|
CBN560 400 N 100 B 0.187 D
|
EB2A3000206053NS
|
3.000" (76mm)
|
1.187" (30mm)
|
0.787" (20mm)
|
30°
|
0.156" (4mm)
|
0.187" (5mm)
|
CBN560 600 N 100 B 0.187 D
|
1A1R CBN EWAG RESIN BOND WHEEL
ITEM#
BRAEMAR
REF NUMBER
|
D
O/A WHEEL
DIAMETER
|
T
O/A WHEEL
THICKNESS
|
H
ARBOR
HOLE
|
SPEC
ABRASIVE HARDNESS
& CONCENTRATION
|
EB1R3000101214RS
|
3.000" (76mm)
|
0.032" (0.81mm)
|
0.393" (10mm)
|
CBN560 120 R 100 B 0.250 DEPTH
|
EB1R3000101514RS
|
3.000" (76mm)
|
0.060" (1.52mm)
|
0.393" (10mm)
|
CBN560 150 R 100 B 0.250 DEPTH
|
EB1R3000101814RS
|
3.000" (76mm)
|
0.032" (0.81mm)
|
0.393" (10mm)
|
CBN560 180 R 100 B 0.250 DEPTH
|
EB1R3000102214RS
|
3.000" (76mm)
|
0.032" (0.81mm)
|
0.393" (10mm)
|
CBN560 220 R 100 B 0.250 DEPTH
|
EB1R3000103214RS
|
3.000" (76mm)
|
0.032" (0.81mm)
|
0.393" (10mm)
|
CBN560 320 R 100 B 0.250 DEPTH
|
14A1 CBN EWAG RESIN BOND WHEEL
ITEM#
BRAEMAR
REF NUMBER
|
D
O/A WHEEL
DIAMETER
|
U
ABRASIVE
WIDTH
|
H
ARBOR
HOLE
|
T
O/A WHEEL
THICKNESS
|
J
HUB
DIAMETER
|
SPEC
ABRASIVE HARDNESS
& CONCENTRATION
|
EB4A2000101213RS
|
2.000" (51mm)
|
0.156" (4mm)
|
0.393" (10mm)
|
0.281" (7.13mm)
|
1.125" (28.57mm)
|
CBN560 120 R 100 B 0.187 DEPTH
|
EB4A2000102013RS
|
2.000" (51mm)
|
0.156" (4mm)
|
0.393" (10mm)
|
0.281" (7.13mm)
|
1.125" (28.57mm)
|
CBN560 200 R 100 B 0.187 DEPTH
|
EB4A2000102213RS
|
2.000" (51mm)
|
0.156" (4mm)
|
0.393" (10mm)
|
0.281" (7.13mm)
|
1.125" (28.57mm)
|
CBN560 220 R 100 B 0.187 DEPTH
|
EB4A2000103213RS
|
2.000" (51mm)
|
0.156" (4mm)
|
0.393" (10mm)
|
0.281" (7.13mm)
|
1.125" (28.57mm)
|
CBN560 320 R 100 B 0.187 DEPTH
|
EB4A2000106013RS
|
2.000" (51mm)
|
0.156" (4mm)
|
0.393" (10mm)
|
0.281" (7.13mm)
|
1.125" (28.57mm)
|
CBN560 600 R 100 B 0.187 DEPTH
|
EB4A3000102212RS
|
3.000" (76mm)
|
0.156" (4mm)
|
0.393" (10mm)
|
0.393" (10.00mm)
|
2.000" (50.00mm)
|
CBN560 220 R 100 B 0.250 DEPTH
|
EB4A3000106012RS
|
3.000" (76mm)
|
0.156" (4mm)
|
0.393" (10mm)
|
0.393" (10.00mm)
|
2.000" (50.00mm)
|
CBN560 600 R 100 B 0.250 DEPTH
|
11V9 CBN EWAG RESIN BOND WHEEL
ITEM#
BRAEMAR
REF NUMBER
|
D
O/A WHEEL
DIAMETER
|
T
O/A WHEEL
THICKNESS
|
H
ARBOR
HOLE
|
S
SIDE
ANGLE
|
U
ABRASIVE
INSERT
|
SPEC
ABRASIVE HARDNESS
& CONCENTRATION
|
EBV93000101871RS
|
3.000" (76mm)
|
1.250" (31.75mm)
|
0.393" (10mm)
|
70°
|
0.500" (12.7mm)
|
CBN560 180 R 075 B 0.062 DEPTH
|
EBV93000102271RS
|
3.000" (76mm)
|
1.250" (31.75mm)
|
0.393" (10mm)
|
70°
|
0.500" (12.7mm)
|
CBN560 220 R 075 B 0.062 DEPTH
|
EBV93000103271RS
|
3.000" (76mm)
|
1.250" (31.75mm)
|
0.393" (10mm)
|
70°
|
0.500" (12.7mm)
|
CBN560 320 R 075 B 0.062 DEPTH
|
12V9 CBN EWAG RESIN BOND WHEEL
ITEM#
BRAEMAR
REF NUMBER
|
D
O/A WHEEL
DIAMETER
|
T
O/A WHEEL
THICKNESS
|
H
ARBOR
HOLE
|
S
SIDE
ANGLE
|
U
ABRASIVE
INSERT
|
SPEC
ABRASIVE HARDNESS
& CONCENTRATION
|
EB2V3000201811RS
|
3.000" (76mm)
|
0.875" (22.22mm)
|
0.787" (20mm)
|
45°
|
0.375" (9.52mm)
|
CBN560 180 R 100 B 0.062 DEPTH
|
EB2V3000203211RS
|
3.000" (76mm)
|
0.875" (22.22mm)
|
0.787" (20mm)
|
45°
|
0.375" (9.52mm)
|
CBN560 320 R 100 B 0.062 DEPTH
|
EB2V3000206073NS
|
3.000" (76mm)
|
0.875" (22.22mm)
|
0.787" (20mm)
|
45°
|
0.375" (9.52mm)
|
CBN560 600 N 075 B 0.062 DEPTH
|
12A2 CBN EWAG RESIN BOND WHEEL
ITEM#
BRAEMAR
REF NUMBER
|
D
O/A WHEEL
DIAMETER
|
T
O/A WHEEL
THICKNESS
|
H
ARBOR
HOLE
|
S
SIDE
ANGLE
|
W
RIM
WIDTH
|
SPEC
ABRASIVE HARDNESS
& CONCENTRATION
|
EB2A3000201213RS
|
3.000" (76mm)
|
1.187" (30mm)
|
0.787" (20mm)
|
30°-35°
|
0.156" (4mm)
|
CBN560 120 R 100 B 0.187 DEPTH
|
EB2A3000201573RS
|
3.000" (76mm)
|
1.187" (30mm)
|
0.787" (20mm)
|
30°-35°
|
0.156" (4mm)
|
CBN560 150 R 075 B 0.187 DEPTH
|
EB2A3000202213RS
|
3.000" (76mm)
|
1.187" (30mm)
|
0.787" (20mm)
|
30°-35°
|
0.156" (4mm)
|
CBN560 220 R 100 B 0.187 DEPTH
|
EB2A3000206013NS
|
3.000" (76mm)
|
1.187" (30mm)
|
0.787" (20mm)
|
30°-35°
|
0.156" (4mm)
|
CBN560 600 N 100 B 0.187 DEPTH
|
EB2A3000208053NS
|
3.000" (76mm)
|
1.187" (30mm)
|
0.787" (20mm)
|
30°-35°
|
0.156" (4mm)
|
CBN560 800 N 050 B 0.187 DEPTH
|
6A2 CBN EWAG RESIN BOND WHEEL
ITEM#
BRAEMAR
REF NUMBER
|
D
O/A WHEEL
DIAMETER
|
T
O/A WHEEL
THICKNESS
|
H
ARBOR
HOLE
|
W
RIM
WIDTH
|
X
BOND
DEPTH
|
SPEC
ABRASIVE HARDNESS
& CONCENTRATION
|
EB6A1187062273NS
|
1.187" (30mm)
|
1.000" (25mm)
|
0.236" (6mm)
|
0.125" (3mm)
|
0.156" (4mm)
|
CBN560 220 N 075 B 0.187 DEPTH
|
EB6A1187062213RS
|
1.187" (30mm)
|
1.000" (25mm)
|
0.236" (6mm)
|
0.125" (3mm)
|
0.156" (4mm)
|
CBN560 220 R 100 B 0.187 DEPTH
|
EB6A1187063273NS
|
1.187" (30mm)
|
1.000" (25mm)
|
0.236" (6mm)
|
0.125" (3mm)
|
0.156" (4mm)
|
CBN560 320 N 075 B 0.187 DEPTH
|
EB6A1187066073NS
|
1.187" (30mm)
|
1.000" (25mm)
|
0.236" (6mm)
|
0.125" (3mm)
|
0.156" (4mm)
|
CBN560 600 N 075 B 0.187 DEPTH
|
EB6A1187066013RS
|
1.187" (30mm)
|
1.000" (25mm)
|
0.236" (6mm)
|
0.125" (3mm)
|
0.156" (4mm)
|
CBN560 600 R 100 B 0.187 DEPTH
|
1EE1 CBN EWAG RESIN BOND WHEEL
ITEM#
BRAEMAR
REF NUMBER
|
D
O/A WHEEL
DIAMETER
|
T
O/A WHEEL
THICKNESS
|
H
ARBOR
HOLE
|
A
INCLUDED
ANGLE
|
X
BOND
DEPTH
|
SPEC
ABRASIVE HARDNESS
& CONCENTRATION
|
EB1E3000102212R3
|
3.000" (76mm)
|
0.250" (6mm)
|
0.393" (10mm)
|
30°
|
0.125" (3mm)
|
CBN560 220 R 100 B 0.125 DEPTH
|
EB1E3000102212R4
|
3.000" (76mm)
|
0.250" (6mm)
|
0.393" (10mm)
|
45°
|
0.125" (3mm)
|
CBN560 220 R 100 B 0.125 DEPTH
|
EB1E3000103212R3
|
3.000" (76mm)
|
0.250" (6mm)
|
0.393" (10mm)
|
30°
|
0.125" (3mm)
|
CBN560 320 R 100 B 0.125 DEPTH
|
EB1E3000103212R4
|
3.000" (76mm)
|
0.250" (6mm)
|
0.393" (10mm)
|
45°
|
0.125" (3mm)
|
CBN560 320 R 100 B 0.125 DEPTH
|
EB1E3000106212R3
|
3.000" (76mm)
|
0.250" (6mm)
|
0.393" (10mm)
|
30°
|
0.125" (3mm)
|
CBN560 600 R 100 B 0.125 DEPTH
|
EB1E3000106212R4
|
3.000" (76mm)
|
0.250" (6mm)
|
0.393" (10mm)
|
45°
|
0.125" (3mm)
|
CBN560 600 R 100 B 0.125 DEPTH
|
