Resin bond matrix offer high cut rates in wet or dry grinding applications
on materials such as hard ferrous metals over 45 rockwell hardness.

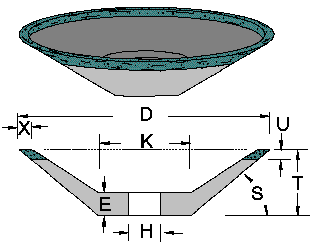

12V9 CBN WHEEL



12V9 CBN 3.000 X 0.500 X specify hole size  30° 0.250 insert
                                                  Grit sizes 100/150/180/220/320  0.062 or 0.125 depth
12V9 CBN 3.000 X 0.875 X specify hole size  45° 0.375 insert
                                                  Grit sizes 100/150/180/220/320  0.062 or 0.125 depth
12V9 CBN 4.000 X 0.500 X specify hole size  15° 0.250 insert
                                                  Grit sizes 100/150/180/220/320  0.062 or 0.125 depth
12V9 CBN 4.000 X 0.500 X specify hole size  25° 0.250 insert
                                                  Grit sizes 100/150/180/220/320  0.062 or 0.125 depth
12V9 CBN 4.000 X 0.500 X specify hole size  30° 0.250 insert
                                                  Grit sizes 100/150/180/220/320  0.062 or 0.125 depth
12V9 CBN 4.000 X 0.875 X specify hole size  45° 0.375 insert
                                                  Grit sizes 100/150/180/220/320  0.062 or 0.125 depth
12V9 CBN 5.000 X 0.500 X specify hole size  15° 0.250 insert
                                                  Grit sizes 100/150/180/220/320  0.062 or 0.125 depth
12V9 CBN 5.000 X 0.500 X specify hole size  25° 0.250 insert
                                                  Grit sizes 100/150/180/220/320  0.062 or 0.125 depth
12V9 CBN 5.000 X 0.500 X specify hole size  30° 0.250 insert
                                                  Grit sizes 100/150/180/220/320  0.062 or 0.125 depth
12V9 CBN 5.000 X 0.875 X specify hole size  45° 0.375 insert
                                                  Grit sizes 100/150/180/220/320  0.062 or 0.125 depth
