Monoset CBN Wheels
 |
Braemar USA offers a complete line of precision CBN wheels for Monoset grinding machines. CBN Monoset wheels are normally used for grinding hardened steel tools.The following wheels are standard stock items. Products other than these standards are available on request.
1A1R CBN MONOSET RESIN BOND WHEEL
ITEM#
BRAEMAR
REF NUMBER
|
D
O/A WHEEL
DIAMETER
|
T
O/A WHEEL
THICKNESS
|
H
ARBOR
HOLE
|
SPEC
ABRASIVE HARDNESS
& CONCENTRATION
|
M50050
|
4.000"
|
0.032"
|
0.750"
|
CBN560 120 R 100 B 0.250 DEPTH
|
M50100
|
4.000"
|
0.040"
|
0.750"
|
CBN560 120 R 100 B 0.250 DEPTH
|
M50150
|
4.000"
|
0.062"
|
0.750"
|
CBN560 120 R 100 B 0.250 DEPTH
|
M50200
|
4.000"
|
0.093"
|
0.750"
|
CBN560 120 R 100 B 0.250 DEPTH
|
M50200
|
4.000"
|
0.093"
|
0.750"
|
CBN560 220 R 100 B 0.250 DEPTH
|
1A1 CBN MONOSET RESIN BOND WHEEL
ITEM#
BRAEMAR
REF NUMBER
|
D
O/A WHEEL
DIAMETER
|
T
O/A WHEEL
THICKNESS
|
H
ARBOR
HOLE
|
SPEC
ABRASIVE HARDNESS
& CONCENTRATION
|
M50250
|
4.000"
|
0.125
|
0.750"
|
CBN560 120 R 075 B 0.250 DEPTH
|
M50300
|
4.000"
|
0.250
|
0.750"
|
CBN560 120 R 075 B 0.250 DEPTH
|
M50350
|
4.000"
|
0.250
|
0.750"
|
CBN560 220 R 075 B 0.250 DEPTH
|
M50400
|
4.000"
|
0.250
|
0.750"
|
CBN560 320 R 075 B 0.250 DEPTH
|
M50450
|
4.000"
|
0.250
|
0.750"
|
CBN560 600 N 075 B 0.250 DEPTH
|
M50500
|
4.000"
|
0.375
|
0.750"
|
CBN560 120 R 075 B 0.250 DEPTH
|
M50550
|
4.000"
|
0.375
|
0.750"
|
CBN560 220 R 075 B 0.250 DEPTH
|
M50600
|
4.000"
|
0.375
|
0.750"
|
CBN560 320 R 075 B 0.250 DEPTH
|

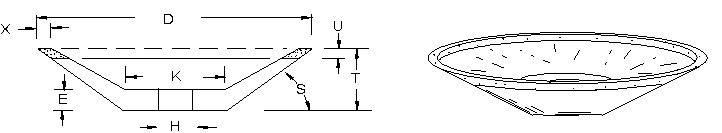

12V9 CBN MONOSET RESIN BOND WHEEL
ITEM#
BRAEMAR
REF NUMBER
|
D
O/A WHEEL
DIAMETER
|
T
O/A WHEEL
THICKNESS
|
H
ARBOR
HOLE
|
S
SIDE
ANGLE
|
X
RIM
WIDTH
|
SPEC
ABRASIVE HARDNESS
& CONCENTRATION
|
M51700
|
3.000"
|
0.500"
|
0.750"
|
30°
|
0.062"
|
CBN560 150 R 100 B 0.062 DEPTH
|
M51750
|
3.000"
|
0.500"
|
0.750"
|
30°
|
0.062"
|
CBN560 220 R 100 B 0.062 DEPTH
|
M51800
|
4.000"
|
0.500"
|
0.750"
|
30°
|
0.125"
|
CBN560 150 R 100 B 0.062 DEPTH
|
M51850
|
4.000"
|
0.500"
|
0.750"
|
30°
|
0.125"
|
CBN560 220 R 100 B 0.062 DEPTH
|

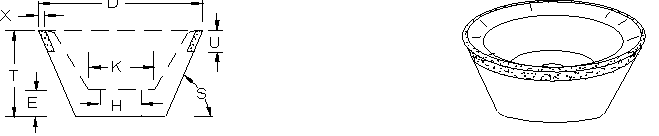

11V9 CBN MONOSET RESIN BOND WHEEL
ITEM#
BRAEMAR
REF NUMBER
|
D
O/A WHEEL
DIAMETER
|
T
O/A WHEEL
THICKNESS
|
H
ARBOR
HOLE
|
S
SIDE
ANGLE
|
U
ABRASIVE
INSERT
|
SPEC
ABRASIVE HARDNESS
& CONCENTRATION
|
M51200
|
3.000"
|
1.250"
|
0.750"
|
70°
|
0.500"
|
CBN560 120 R 075 B 0.062 DEPTH
|
M51200
|
3.000"
|
1.250"
|
0.750"
|
70°
|
0.500"
|
CBN560 180 R 075 B 0.062 DEPTH
|
M51200
|
3.000"
|
1.250"
|
0.750"
|
70°
|
0.500"
|
CBN560 220 R 075 B 0.062 DEPTH
|
