Diamond Ewag Wheels
 |
Braemar USA offers a complete line of precision Diamond and CBN grinding wheels for Ewag grinding machines. This catalog lists a large variety of super abrasive wheels in many sizes and formulations. Ewag wheels are normally used for grinding cemented carbides, ceramics tool steels and other hard to grind materials. This catalog describes the standard products mostly used in industry today. Products other than these standards are available on request.

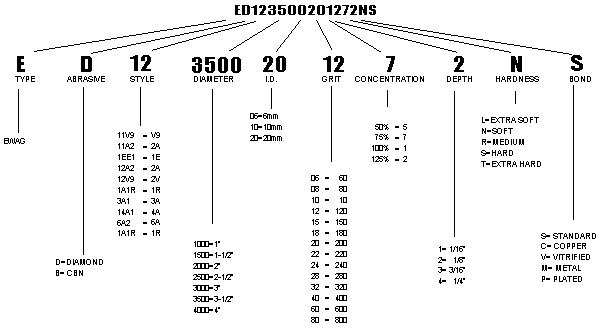

INTERPRETATION OF BRAEMAR DIAMOND AND CBN EWAG WHEELS
1A1 DIAMOND EWAG RESIN BOND WHEEL
ITEM#
BRAEMAR
REF NUMBER
|
D
O/A WHEEL
DIAMETER
|
T
O/A WHEEL
THICKNESS
|
H
ARBOR
HOLE
|
SPEC
ABRASIVE HARDNESS
& CONCENTRATION
|
ED1A3000101274RS
|
3.000" (76mm)
|
0.375" (9.5mm)
|
0.393" (10mm)
|
SD 120 R 075 B 0.250 DEPTH
|
ED1A3000102274RS
|
3.000" (76mm)
|
0.375" (9.5mm)
|
0.393" (10mm)
|
SD 220 R 075 B 0.250 DEPTH
|
ED1A3000106074RS
|
3.000" (76mm)
|
0.375" (9.5mm)
|
0.393" (10mm)
|
SD 600 N 075 B 0.250 DEPTH
|

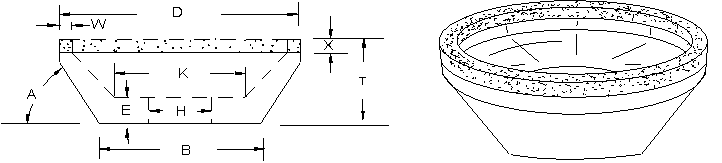

11A2 DIAMOND EWAG RESIN BOND WHEEL
ITEM#
BRAEMAR
REF NUMBER
|
D
O/A WHEEL
DIAMETER
|
T
O/A WHEEL
THICKNESS
|
H
ARBOR
HOLE
|
A
DISH
ANGLE
|
W
RIM
WIDTH
|
X
BOND
DEPTH
|
SPEC
ABRASIVE HARDNESS
& CONCENTRATION
|
ED2A3000201213RS
|
3.000" (76mm)
|
1.187" (30mm)
|
0.787" (20mm)
|
30°
|
0.156" (4mm)
|
0.187" (5mm)
|
SD 120 R 100 B 0.187 D
|
ED2A3000202213RS
|
3.000" (76mm)
|
1.187" (30mm)
|
0.787" (20mm)
|
30°
|
0.156" (4mm)
|
0.187" (5mm)
|
SD 220 R 100 B 0.187 D
|
ED2A3000203213RS
|
3.000" (76mm)
|
1.187" (30mm)
|
0.787" (20mm)
|
30°
|
0.156" (4mm)
|
0.187" (5mm)
|
SD 320 R 100 B 0.187 D
|
ED2A3000206013NS
|
3.000" (76mm)
|
1.187" (30mm)
|
0.787" (20mm)
|
30°
|
0.156" (4mm)
|
0.187" (5mm)
|
SD 600 N 100 B 0.187 D
|
ED2A3000206053RS
|
3.000" (76mm)
|
1.187" (30mm)
|
0.787" (20mm)
|
30°
|
0.156" (4mm)
|
0.187" (5mm)
|
SD 600 R 050 B 0.187 D
|
1A1R DIAMOND EWAG RESIN BOND WHEEL
ITEM#
BRAEMAR
REF NUMBER
|
D
O/A WHEEL
DIAMETER
|
T
O/A WHEEL
THICKNESS
|
H
ARBOR
HOLE
|
SPEC
ABRASIVE HARDNESS
& CONCENTRATION
|
ED1R3000101214RS
|
3.000" (76mm)
|
0.032" (0.81mm)
|
0.393" (10mm)
|
SD 120 R 100 B 0.250 DEPTH
|
ED1R3000101514RS
|
3.000" (76mm)
|
0.060" (1.52mm)
|
0.393" (10mm)
|
SD 120 R 100 B 0.250 DEPTH
|
ED1R3000101814RS
|
3.000" (76mm)
|
0.032" (0.81mm)
|
0.393" (10mm)
|
SD 180 R 100 B 0.250 DEPTH
|
ED1R3000102214RS
|
3.000" (76mm)
|
0.032" (0.81mm)
|
0.393" (10mm)
|
SD 220 R 100 B 0.250 DEPTH
|
ED1R3000103214RS
|
3.000" (76mm)
|
0.032" (0.81mm)
|
0.393" (10mm)
|
SD 320 R 100 B 0.250 DEPTH
|
14A1 DIAMOND EWAG RESIN BOND WHEEL
ITEM#
BRAEMAR
REF NUMBER
|
D
O/A WHEEL
DIAMETER
|
U
ABRASIVE
WIDTH
|
H
ARBOR
HOLE
|
T
O/A WHEEL
THICKNESS
|
J
HUB
DIAMETER
|
SPEC
ABRASIVE HARDNESS
& CONCENTRATION
|
ED4A2000101213RS
|
2.000" (51mm)
|
0.156" (4mm)
|
0.393" (10mm)
|
0.281" (7.13mm)
|
1.125" (28.57mm)
|
SD 120 R 100 B 0.187 DEPTH
|
ED4A2000102013RS
|
2.000" (51mm)
|
0.156" (4mm)
|
0.393" (10mm)
|
0.281" (7.13mm)
|
1.125" (28.57mm)
|
SD 200 R 100 B 0.187 DEPTH
|
ED4A2000102213RS
|
2.000" (51mm)
|
0.156" (4mm)
|
0.393" (10mm)
|
0.281" (7.13mm)
|
1.125" (28.57mm)
|
SD 220 R 100 B 0.187 DEPTH
|
ED4A2000103213RS
|
2.000" (51mm)
|
0.156" (4mm)
|
0.393" (10mm)
|
0.281" (7.13mm)
|
1.125" (28.57mm)
|
SD 320 R 100 B 0.187 DEPTH
|
ED4A2000106013RS
|
2.000" (51mm)
|
0.156" (4mm)
|
0.393" (10mm)
|
0.281" (7.13mm)
|
1.125" (28.57mm)
|
SD 600 R 100 B 0.187 DEPTH
|
ED4A3000102212RS
|
3.000" (76mm)
|
0.156" (4mm)
|
0.393" (10mm)
|
0.393" (10.00mm)
|
2.000" (50.00mm)
|
SD 220 R 100 B 0.250 DEPTH
|
ED4A3000106012RS
|
3.000" (76mm)
|
0.156" (4mm)
|
0.393" (10mm)
|
0.393" (10.00mm)
|
2.000" (50.00mm)
|
SD 600 R 100 B 0.250 DEPTH
|
11V9 DIAMOND EWAG RESIN BOND WHEEL
ITEM#
BRAEMAR
REF NUMBER
|
D
O/A WHEEL
DIAMETER
|
T
O/A WHEEL
THICKNESS
|
H
ARBOR
HOLE
|
S
SIDE
ANGLE
|
U
ABRASIVE
INSERT
|
SPEC
ABRASIVE HARDNESS
& CONCENTRATION
|
EDV93000101871RS
|
3.000" (76mm)
|
1.250" (31.75mm)
|
0.393" (10mm)
|
70°
|
0.500" (12.7mm)
|
SD 180 R 075 B 0.062 DEPTH
|
EDV93000102271RS
|
3.000" (76mm)
|
1.250" (31.75mm)
|
0.393" (10mm)
|
70°
|
0.500" (12.7mm)
|
SD 220 R 075 B 0.062 DEPTH
|
EDV93000103271RS
|
3.000" (76mm)
|
1.250" (31.75mm)
|
0.393" (10mm)
|
70°
|
0.500" (12.7mm)
|
SD 320 R 075 B 0.062 DEPTH
|

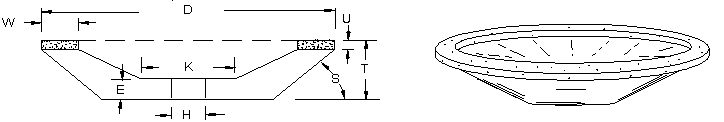

12V9 DIAMOND EWAG RESIN BOND WHEEL
ITEM#
BRAEMAR
REF NUMBER
|
D
O/A WHEEL
DIAMETER
|
T
O/A WHEEL
THICKNESS
|
H
ARBOR
HOLE
|
S
SIDE
ANGLE
|
U
ABRASIVE
INSERT
|
SPEC
ABRASIVE HARDNESS
& CONCENTRATION
|
ED2V3000201811RS
|
3.000" (76mm)
|
0.875" (22.22mm)
|
0.787" (20mm)
|
45°
|
0.375" (9.52mm)
|
SD 180 R 100 B 0.062 DEPTH
|
ED2V3000203211RS
|
3.000" (76mm)
|
0.875" (22.22mm)
|
0.787" (20mm)
|
45°
|
0.375" (9.52mm)
|
SD 320 R 100 B 0.062 DEPTH
|
ED2V3000206073NS
|
3.000" (76mm)
|
0.875" (22.22mm)
|
0.787" (20mm)
|
45°
|
0.375" (9.52mm)
|
SD 600 N 075 B 0.062 DEPTH
|
12A2 DIAMOND EWAG RESIN BOND WHEEL
ITEM#
BRAEMAR
REF NUMBER
|
D
O/A WHEEL
DIAMETER
|
T
O/A WHEEL
THICKNESS
|
H
ARBOR
HOLE
|
S
SIDE
ANGLE
|
W
RIM
WIDTH
|
SPEC
ABRASIVE HARDNESS
& CONCENTRATION
|
ED2A3000201213RS
|
3.000" (76mm)
|
1.187" (30mm)
|
0.787" (20mm)
|
30°-35°
|
0.156" (4mm)
|
SD 120 R 100 B 0.187 DEPTH
|
ED2A3000201573RS
|
3.000" (76mm)
|
1.187" (30mm)
|
0.787" (20mm)
|
30°-35°
|
0.156" (4mm)
|
SD 150 R 075 B 0.187 DEPTH
|
ED2A3000202213RS
|
3.000" (76mm)
|
1.187" (30mm)
|
0.787" (20mm)
|
30°-35°
|
0.156" (4mm)
|
SD 220 R 100 B 0.187 DEPTH
|
ED2A3000206013NS
|
3.000" (76mm)
|
1.187" (30mm)
|
0.787" (20mm)
|
30°-35°
|
0.156" (4mm)
|
SD 600 N 100 B 0.187 DEPTH
|
ED2A3000208053NS
|
3.000" (76mm)
|
1.187" (30mm)
|
0.787" (20mm)
|
30°-35°
|
0.156" (4mm)
|
SD 800 N 050 B 0.187 DEPTH
|

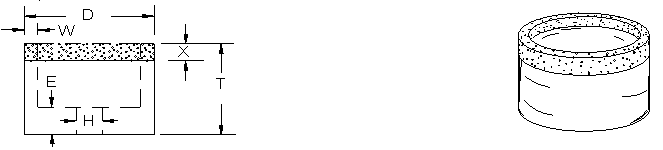

6A2 DIAMOND EWAG RESIN BOND WHEEL
ITEM#
BRAEMAR
REF NUMBER
|
D
O/A WHEEL
DIAMETER
|
T
O/A WHEEL
THICKNESS
|
H
ARBOR
HOLE
|
W
RIM
WIDTH
|
X
BOND
DEPTH
|
SPEC
ABRASIVE HARDNESS
& CONCENTRATION
|
ED6A1187062273NS
|
1.187" (30mm)
|
1.000" (25mm)
|
0.236" (6mm)
|
0.125" (3mm)
|
0.156" (4mm)
|
SD 220 N 075 B 0.187 DEPTH
|
ED6A1187062213RS
|
1.187" (30mm)
|
1.000" (25mm)
|
0.236" (6mm)
|
0.125" (3mm)
|
0.156" (4mm)
|
SD 220 R 100 B 0.187 DEPTH
|
ED6A1187063273NS
|
1.187" (30mm)
|
1.000" (25mm)
|
0.236" (6mm)
|
0.125" (3mm)
|
0.156" (4mm)
|
SD 320 N 075 B 0.187 DEPTH
|
ED6A1187066073NS
|
1.187" (30mm)
|
1.000" (25mm)
|
0.236" (6mm)
|
0.125" (3mm)
|
0.156" (4mm)
|
SD 600 N 075 B 0.187 DEPTH
|
ED6A1187066013RS
|
1.187" (30mm)
|
1.000" (25mm)
|
0.236" (6mm)
|
0.125" (3mm)
|
0.156" (4mm)
|
SD 600 R 100 B 0.187 DEPTH
|
1EE1 DIAMOND EWAG RESIN BOND WHEEL
ITEM#
BRAEMAR
REF NUMBER
|
D
O/A WHEEL
DIAMETER
|
T
O/A WHEEL
THICKNESS
|
H
ARBOR
HOLE
|
A
INCLUDED
ANGLE
|
X
BOND
DEPTH
|
SPEC
ABRASIVE HARDNESS
& CONCENTRATION
|
ED1E3000102212R3
|
3.000" (76mm)
|
0.250" (6mm)
|
0.393" (10mm)
|
30°
|
0.125" (3mm)
|
SD 220 R 100 B 0.125 DEPTH
|
ED1E3000102212R4
|
3.000" (76mm)
|
0.250" (6mm)
|
0.393" (10mm)
|
45°
|
0.125" (3mm)
|
SD 220 R 100 B 0.125 DEPTH
|
ED1E3000103212R3
|
3.000" (76mm)
|
0.250" (6mm)
|
0.393" (10mm)
|
30°
|
0.125" (3mm)
|
SD 320 R 100 B 0.125 DEPTH
|
ED1E3000103212R4
|
3.000" (76mm)
|
0.250" (6mm)
|
0.393" (10mm)
|
45°
|
0.125" (3mm)
|
SD 320 R 100 B 0.125 DEPTH
|
ED1E3000106212R3
|
3.000" (76mm)
|
0.250" (6mm)
|
0.393" (10mm)
|
30°
|
0.125" (3mm)
|
SD 600 R 100 B 0.125 DEPTH
|
ED1E3000106212R4
|
3.000" (76mm)
|
0.250" (6mm)
|
0.393" (10mm)
|
45°
|
0.125" (3mm)
|
SD 600 R 100 B 0.125 DEPTH
|
