1A1 CBN wheels manufactured with GE cubic boron nitride particles in a resin bond matrix offer high cut rates in wet or dry grinding applications on materials such as hard ferrous metals over 45 rockwell hardness
1A1 WITH CT/BORE CBN WHEELS
1A1 WITH HUB CBN WHEELS
1A1 CBN WHEELS

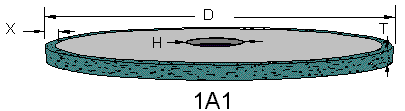

                                               "D"       "T"       "H"
1A1 CBN WHEEL  0.625 X 0.375 X 0.250 A.H.  CT/BORE 0.400 X 0.187 DEEP
                                              GRIT SIZES 100
1A1 CBN WHEEL  0.750 X 0.500X 0.250 A.H.  CT/BORE 0.400 X 0.187 DEEP
                                              GRIT SIZES 100
1A1 CBN WHEEL  0.750 X 0.500 X 0.375 A.H.  CT/BORE 0.400 X 0.187 DEEP
                                              GRIT SIZES 100
1A1 CBN WHEEL  1.000 X 0.500 X 0.375 A.H.  CT/BORE 0.500 X 0.250 DEEP
                                              GRIT SIZES 100/120/150/180/220/320
1A1 CBN WHE1EL  2.000 X 0.500 X 0.375 A.H.  CT/BORE 0.750 X 0.250 DEEP
                                             GRIT SIZES 100/120/150/180/220/320
1A1 CBN WHEEL  3.000 X 0.500 X 0.375 A.H.  CT/BORE 1.000 X 0.250 DEEP
                                             GRIT SIZES 100/220
1A1 CBN WHEEL  4.000 X 0.500 X 0.375 A.H.  CT/BORE 1.000 X 0.250 DEEP
                                             GRIT SIZES 100/220
1A1 CBN WHEEL  6.000 X 0.125 X 1.250 A.H.
                                             GRIT SIZES 100/220/320
1A1 CBN WHEEL  6.000 X 0.250 X 1.250 A.H.
                                             GRIT SIZES 100/220/320
1A1 CBN WHEEL  6.000 X 0.500 X 1.250 A.H.
                                             GRIT SIZES 100/220/320
1A1 CBN WHEEL  7.000 X 0.125 X 1.250 A.H.
                                             GRIT SIZES 100/220/320
1A1 CBN WHEEL  7.000 X 0.250 X 1.250 A.H.
                                             GRIT SIZES 100/220/320
1A1 CBN WHEEL  7.000 X 0.500 X 1.250 A.H.
                                             GRIT SIZES 100/220/320
1A1 CBN WHEEL  7.000 X 1.000 X 1.250 A.H.
                                             GRIT SIZES 100/220/320
1A1 CBN WHEEL  8.000 X 0.125 X 1.250 A.H.
                                             GRIT SIZES 100/220/320
1A1 CBN WHEEL  8.000 X 0.250 X 1.250 A.H.
                                             GRIT SIZES 100/220/320
1A1 CBN WHEEL  8.000 X 0.500 X 1.250 A.H.
                                             GRIT SIZES 100/220/320
1A1 CBN WHEEL  8.000 X 1.000 X 1.250 A.H.
                                             GRIT SIZES 100/220/320
1A1 CBN WHEEL  10.000 X 0.125 X 1.250 A.H.
                                             GRIT SIZES 100/220/320
1A1 CBN WHEEL  10.000 X 0.250 X 1.250 A.H.
                                             GRIT SIZES 100/220/320
1A1 CBN WHEEL  10.000 X 0.500 X 1.250 A.H.
                                             GRIT SIZES 100/220/320
1A1 CBN WHEEL  10.000 X 1.000 X 1.250 A.H.
                                             GRIT SIZES 100/220/320
1A1 CBN WHEEL  12.000 X 0.250 X 1.250 A.H.
                                             GRIT SIZES 100/220/320
1A1 CBN WHEEL  12.000 X 0.500 X 1.250 A.H.
                                             GRIT SIZES 100/220/320
1A1 CBN WHEEL  12.000 X 1.000 X 1.250 A.H.
                                             GRIT SIZES 100/220/320
1A1 CBN WHEEL  14.000 X 0.250 X 1.250 A.H.
                                             GRIT SIZES 100/220/320
1A1 CBN WHEEL  14.000 X 0.500 X 1.250 A.H.
                                             GRIT SIZES 100/220/320
1A1 CBN WHEEL  14.000 X 1.000 X 1.250 A.H.
                                             GRIT SIZES 100/220/320
1A1 CBN WHEEL  16.000 X 0.250 X 1.250 A.H.
                                             GRIT SIZES 100/220/320
1A1 DIAMOND WHEEL  16.000 X 0.500 X 1.250 A.H.
                                             GRIT SIZES 100/220/320
1A1 CBN WHEEL  16.000 X 1.000 X 1.250 A.H.
                                             GRIT SIZES 100/220/320
1A1 CBN WHEEL  18.000 X 0.250 X 1.250 A.H.
                                             GRIT SIZES 100/220/320
1A1 CBN WHEEL  18.000 X 0.500 X 1.250 A.H.
                                             GRIT SIZES 100/220/320
1A1 CBN WHEEL  18.000 X 1.000 X 1.250 A.H.
                                             GRIT SIZES 100/220/320
1A1 CBN WHEEL  20,000 X 0.250 X 1.250 A.H.
                                             GRIT SIZES 100/220/320
1A1 CBN WHEEL  20.000 X 0.500 X 1.250 A.H.
                                             GRIT SIZES 100/220/320
1A1 CBN WHEEL  20.000 X 1.000 X 1.250 A.H.
                                             GRIT SIZES 100/220/320
1A1 CBN WHEEL  22.000 X 0.500 X 1.250 A.H.
                                             GRIT SIZES 100/220/320
1A1 CBN WHEEL  22.000 X 1.000 X 1.250 A.H.
                                             GRIT SIZES 100/220/320
1A1 CBN WHEEL  24.000 X 0.500 X 1.250 A.H.
                                             GRIT SIZES 100/220/320
1A1 CBN WHEEL  24.000 X 1.000 X 1.250 A.H.
                                             GRIT SIZES 100/220/320
1A1 CBN WHEEL  28.000 X 0.500 X 1.250 A.H.
                                             GRIT SIZES 100/220/320
1A1 CBN WHEEL  28.000 X 1.000 X 1.250 A.H.
                                             GRIT SIZES 100/220/320
1A1 CBN WHEEL  30.000 X 1.000 X 1.250 A.H.
                                             GRIT SIZES 100/220/320
